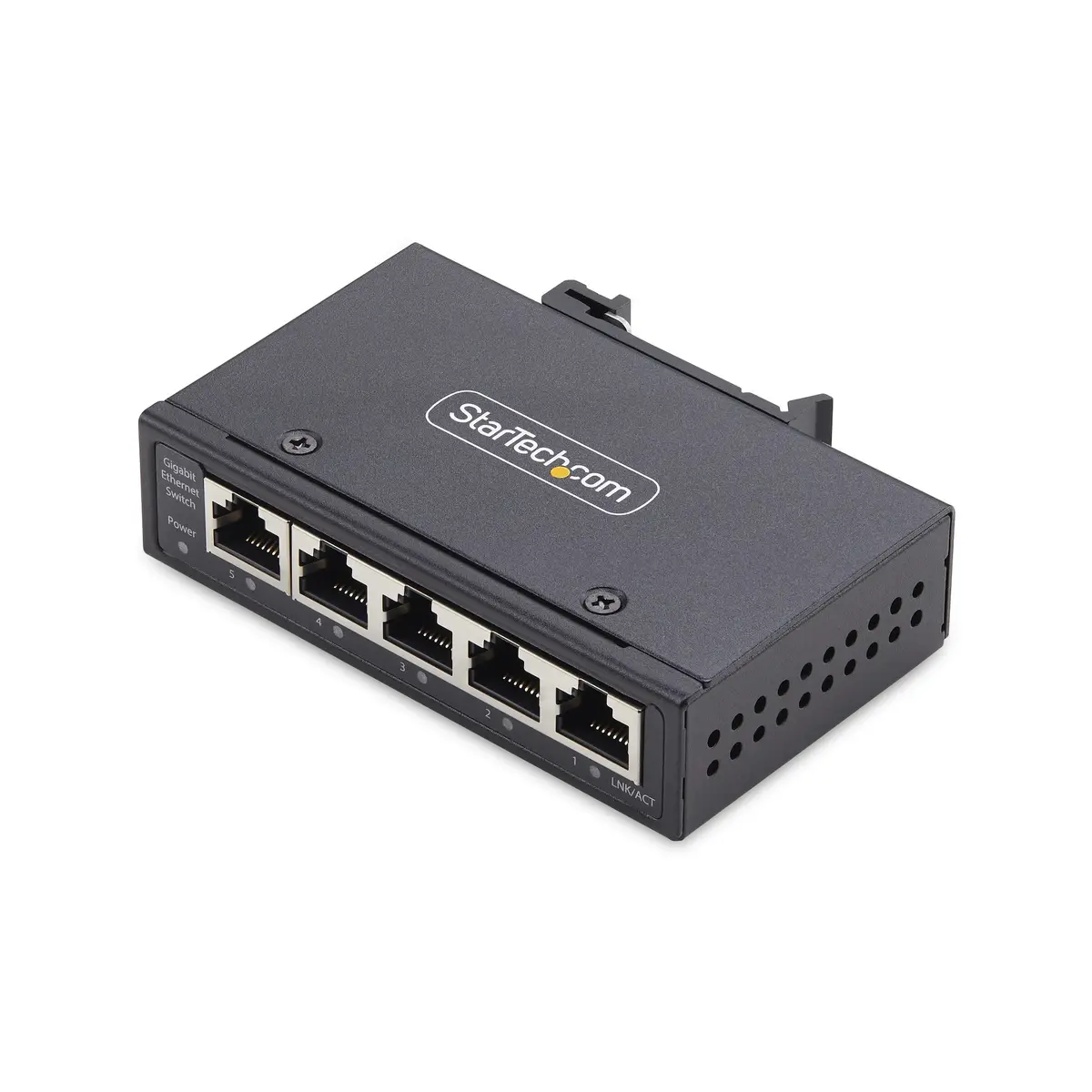

StarTech.com 5-Port Unmanaged Industrial Network Switch, 10/100/1000 Ethernet, Din R – I51G-ETHERNET-SWITCH
STARTECH 5-Port Unmanaged Industrial Network Switch, 10/100/1000 Ethernet, DIN R
Features
Technical Specifications
| Brand | : | StarTech.com |
| Manufacturer Part Number | : | I51G-ETHERNET-SWITCH |
| Product Category | : | Network Switches |
| UPC | : | 065030909648 |
| Switch type | : | Unmanaged |
| Quality of Service (QoS) support | : | Yes |
| Basic switching RJ-45 Ethernet ports quantity | : | 5 |
| Basic switching RJ-45 Ethernet ports type | : | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | : | 0 |
| Installed SFP+ modules quantity | : | 0 |
| Gigabit Ethernet (copper) ports quantity | : | 5 |

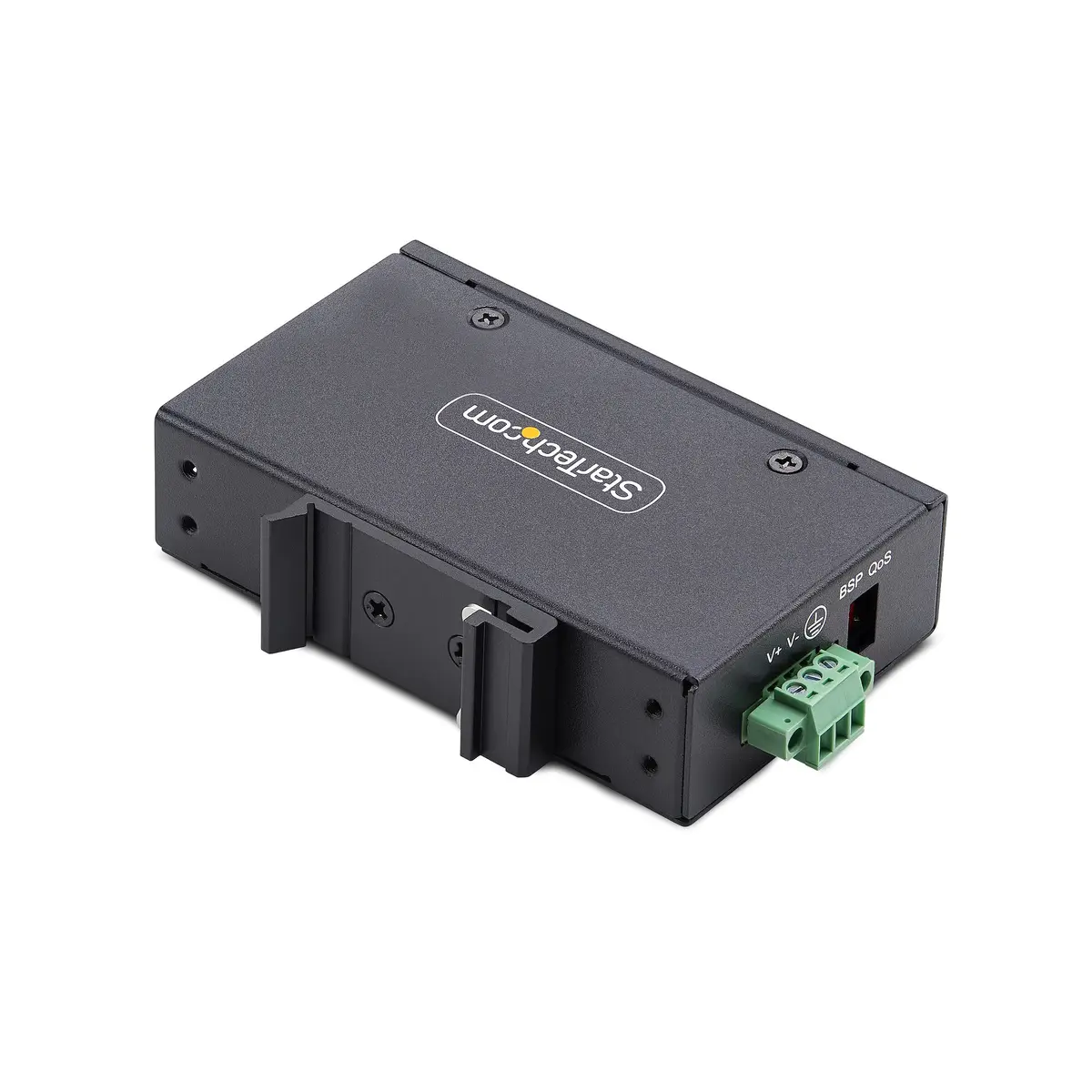

| Power connector | : | Terminal block (3-pin) |
| Networking standards | : | IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | : | No |
| Copper ethernet cabling technology | : | 100BASE-TX, 1000BASE-T |
| Full duplex | : | Yes |
| Auto MDI/MDI-X | : | Yes |
| Ethernet LAN data rates | : | 10,100,1000 Mbit/s |
| Store-and-forward | : | Yes |
| Jumbo frames support | : | Yes |
| Jumbo frames | : | 9000 |
| Product color | : | Black |
| Housing material | : | Metal |
| LED indicators | : | Yes |
| International Protection (IP) code | : | IP30 |
| Wall mountable | : | Yes |
| DIN rail mounting | : | Yes |
| Mean time between failures (MTBF) | : | 556710 h |
| Power supply included | : | Yes |
| Input voltage | : | 9 - 60 V |
| Operating temperature (T-T) | : | -40 - 75 °C |
| Storage temperature (T-T) | : | -40 - 85 °C |
| Operating relative humidity (H-H) | : | 5 - 95% |
| Width | : | 60 mm |
| Depth | : | 100 mm |
| Height | : | 26 mm |
| Weight | : | 221,7 g |
| Quick start guide | : | Yes |
| Terminal block included | : | Yes |
