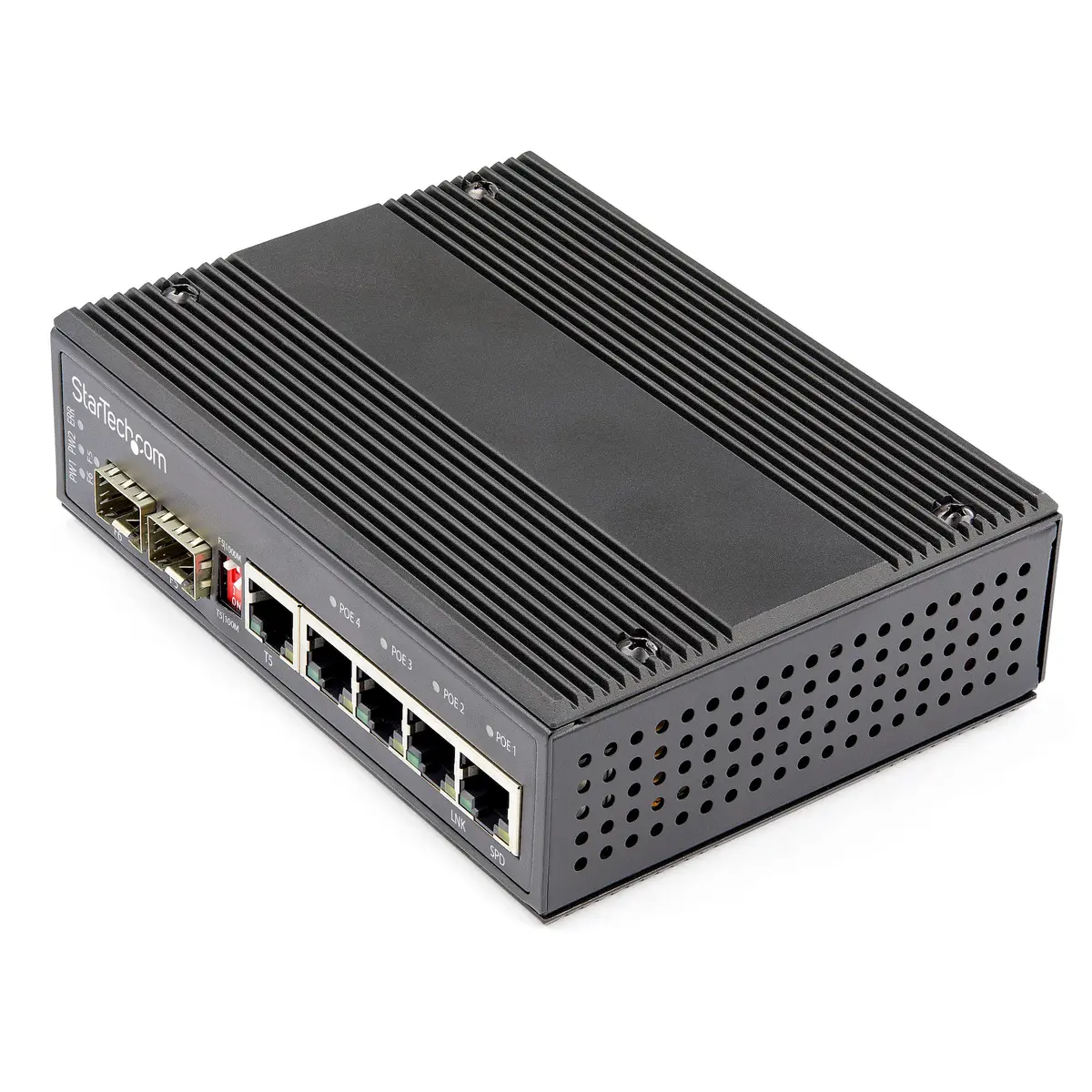

StarTech.com Industrial 5 Port Gigabit Ethernet Switch - Up to 30W per 4 PoE ports - 75C to – IES1G52UP12V
Industrial 5 Port Gigabit Ethernet Switch - Up to 30W per 4 PoE ports - 75C to -
Features
Technical Specifications
| Brand | : | StarTech.com |
| Manufacturer Part Number | : | IES1G52UP12V |
| Product Category | : | Network Switches |
| UPC | : | 065030889834 |
| Switch type | : | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | : | 5 |
| Basic switching RJ-45 Ethernet ports type | : | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | : | 0 |
| Installed SFP+ modules quantity | : | 0 |
| SFP module slots quantity | : | 2 |
| Networking standards | : | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| 10G support | : | No |
| Copper ethernet cabling technology | : | 10BASE-T, 100BASE-T, 1000BASE-T |
| Full duplex | : | Yes |
| Flow control support | : | Yes |
| Auto MDI/MDI-X | : | Yes |
| Auto-negotiation | : | Yes |
| Switching capacity | : | 12 Gbit/s |
| Jumbo frames support | : | Yes |
| Jumbo frames | : | 9000 |
| Supported network protocols | : | CSMA/CD |
| Rack mounting | : | No |
| Product color | : | Black |
| Housing material | : | Aluminium, Steel |
| LED indicators | : | Activity, Link, PoE, Power |
| International Protection (IP) code | : | IP30 |
| Wall mountable | : | Yes |
| DIN rail mounting | : | Yes |
| Safety | : | EN60950-1 |
| Buffer size | : | 128 KB |
| Mean time between failures (MTBF) | : | 693764 h |
| Surge protection | : | Yes |
| Surge protection voltage | : | 2 kV |
| Power over Ethernet (PoE) | : | Yes |
| Power over Ethernet plus (PoE+) ports quantity | : | 4 |
| Power over Ethernet (PoE) power per port | : | 30 W |
| Total Power over Ethernet (PoE) budget | : | 120 W |

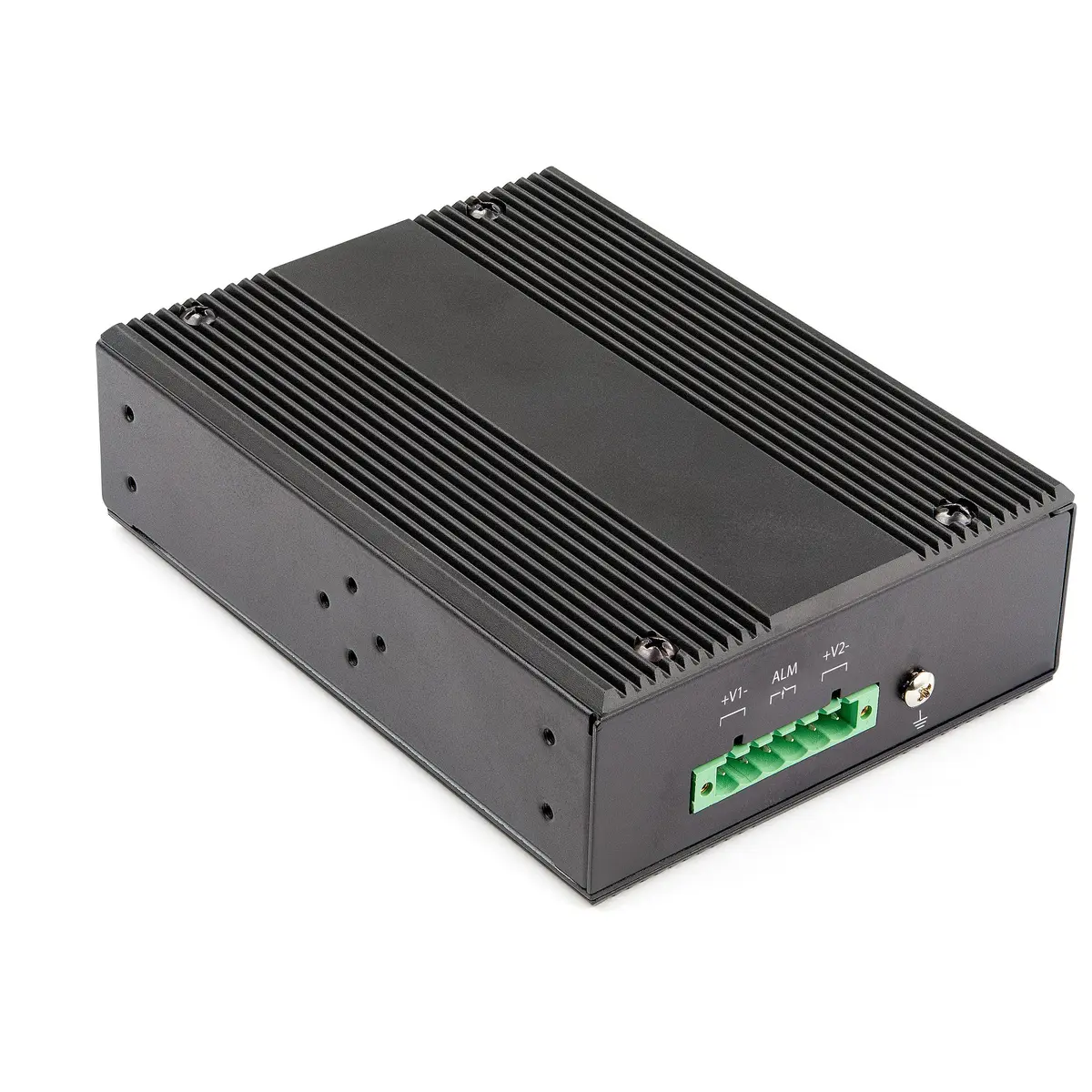

| Terminal block port | : | Yes |
| Operating temperature (T-T) | : | -40 - 75 °C |
