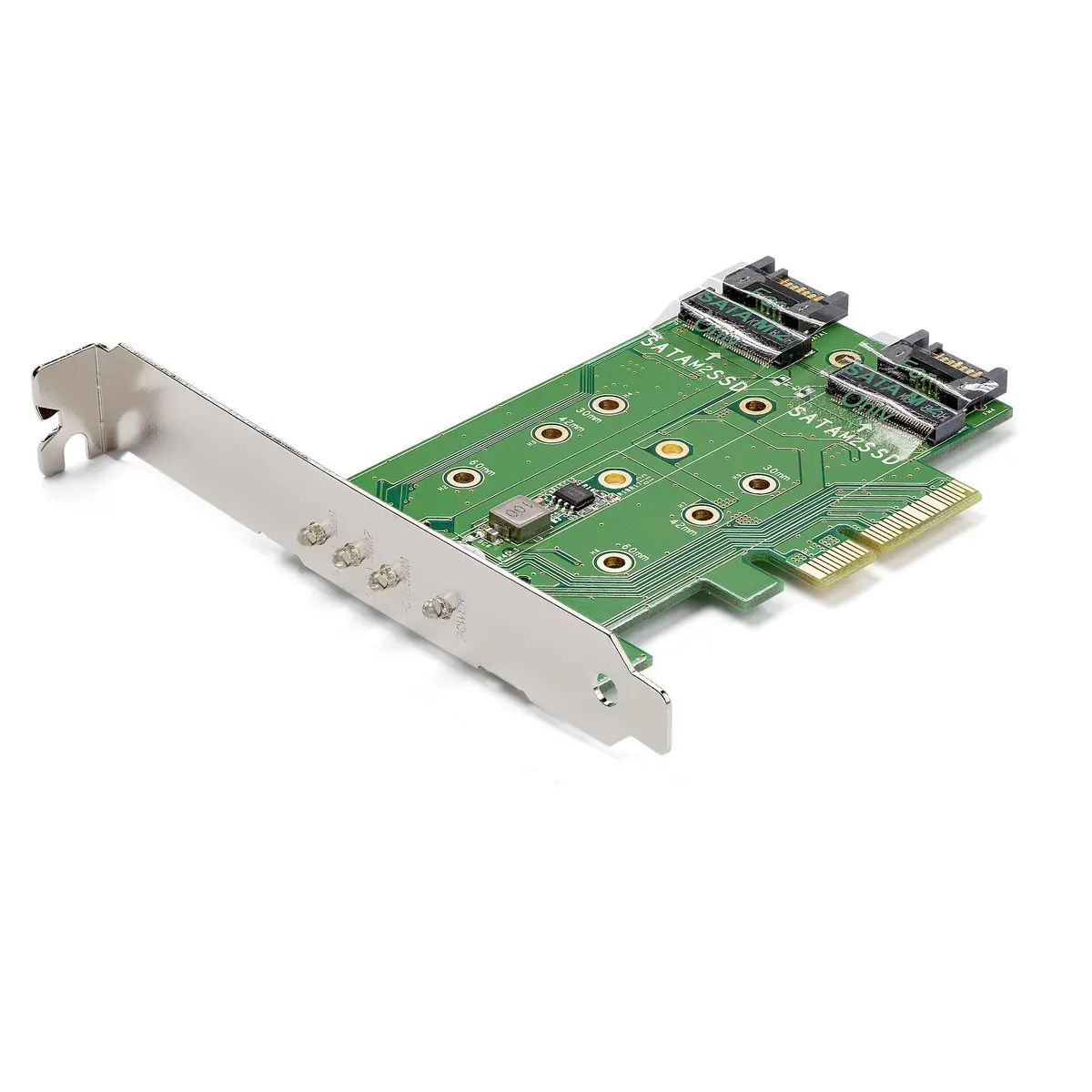

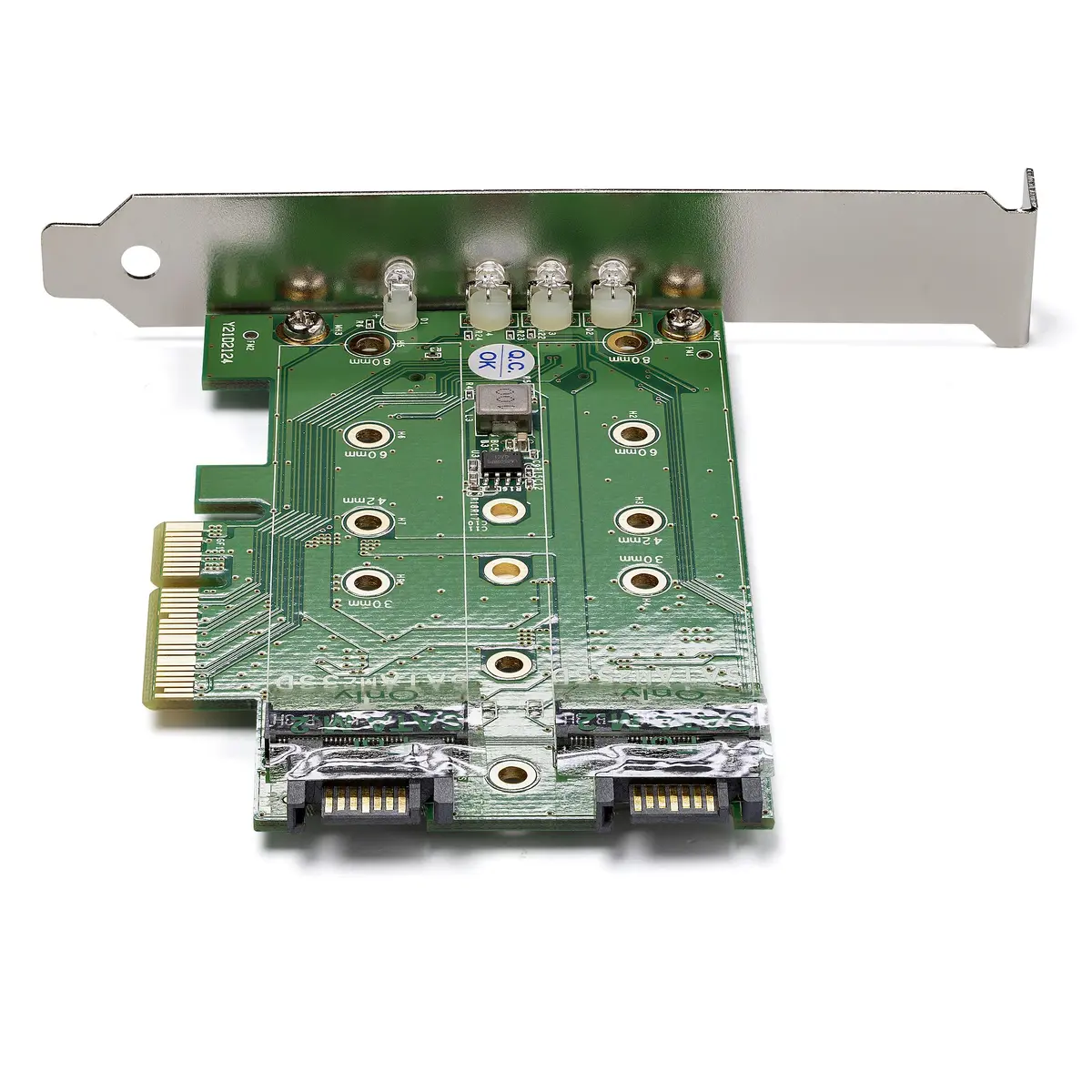

StarTech.com Mount both PCIe (NVMe) and Sata based M.2 SSDs inside your computer using this P – PEXM2SAT32N1
Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this P
Features
Technical Specifications
| Brand | : | StarTech.com |
| Manufacturer Part Number | : | PEXM2SAT32N1 |
| Product Category | : | SSD & Hard Drives |
| UPC | : | 065030865708 |
| Host interface | : | PCIe |
| Output interface | : | M.2, SATA |
| Expansion card form factor | : | Full-height / Low-profile |
| Expansion card standard | : | PCIe 3.0 |
| SATA revision | : | 3.0 |
| Internal SATA ports quantity | : | 2 |
| Port multiplier | : | No |
| Internal | : | Yes |
| LED indicators | : | Yes |
| Mean time between failures (MTBF) | : | 50000 h |
| Certification | : | CE, FCC, TAA, REACH |
| Data transfer rate (max) | : | 6 Gbit/s |
| Operating temperature (T-T) | : | 5 - 50 °C |
| Storage temperature (T-T) | : | -25 - 70 °C |
| Operating relative humidity (H-H) | : | 20 - 80% |
| Compliance certificates | : | RoHS |
| Width | : | 20 mm |
| Depth | : | 120 mm |
| Height | : | 120 mm |
| Weight | : | 65 g |
| Mounting brackets included | : | Yes |
| Screws included | : | Yes |
| Quick installation guide | : | Yes |
| Package width | : | 129 mm |
| Package depth | : | 162 mm |
| Package height | : | 33 mm |
| Package weight | : | 127 g |
| Harmonized System (HS) code | : | 84733020 |
| Quantity per master (outer) case | : | 100 pc(s) |
| Master (outer) case width | : | 485 mm |
| Master (outer) case length | : | 551 mm |
| Master (outer) case height | : | 335 mm |
