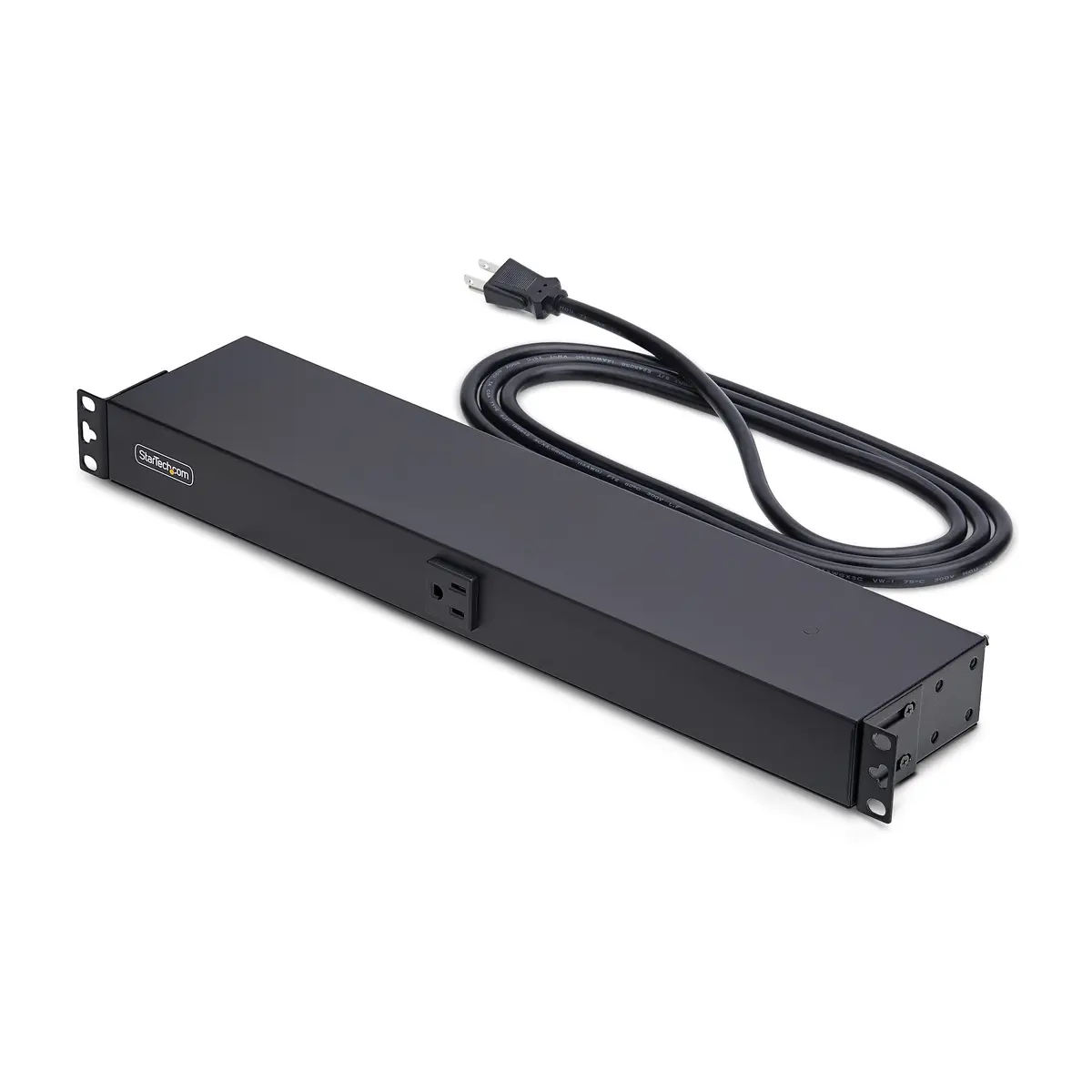

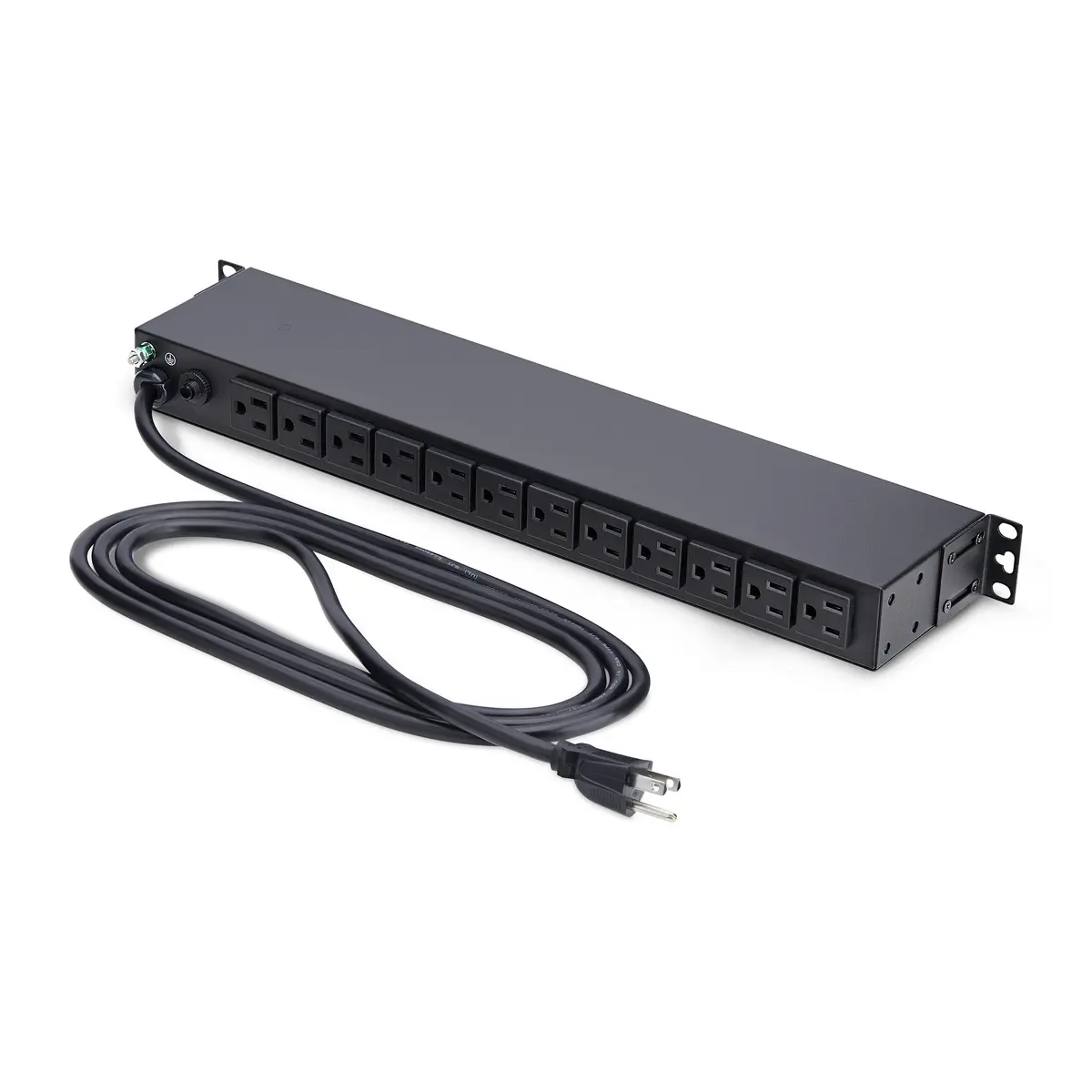

StarTech.com 1U rackmount Pdu unit for 19-inch racks w/ 13x NEMA 5-15 electrical outlets - 1x Fr – 1315B8H-RACK-PDU
1U rackmount PDU unit for 19in racks w/ 13x NEMA 5-15 electrical outlets - 1x Fr
Features
Technical Specifications
| Brand | : | StarTech.com |
| Manufacturer Part Number | : | 1315B8H-RACK-PDU |
| Product Category | : | UPS & Power Protection |
| UPC | : | 065030920957 |
| PDU types | : | Basic |
| Rack capacity | : | 1U |
| Rack mounting | : | Yes |
| Mounting | : | Horizontal |
| Housing material | : | Steel |
| Product color | : | Black |
| AC outlets quantity | : | 13 AC outlet(s) |
| AC outlet types | : | NEMA 5-15R |
| Power plug | : | NEMA 5-15P |
| Cable length | : | 2,4 m |
| Nominal input voltage | : | 120 V |
| Maximum current | : | 15 A |
| Output voltage | : | 125 V |
| Load capacity | : | 1500 VA |
| Maximum input current per phase | : | 15 A |
| Circuit breaker | : | Yes |
| Width | : | 110 mm |
| Depth | : | 477,2 mm |
| Height | : | 43,3 mm |
| Weight | : | 1,69 kg |
| Manual | : | Yes |
| Screws included | : | Yes |
| Number of screws | : | 4 |
| Screw nuts included | : | Yes |
| Number of screw nuts | : | 4 |
| Package weight | : | 2,2 kg |
| Package width | : | 516 mm |
| Package depth | : | 235 mm |
| Package height | : | 52 mm |
| Master (outer) case width | : | 528 mm |
| Master (outer) case length | : | 350 mm |
| Master (outer) case height | : | 250 mm |
| Quantity per master (outer) case | : | 4 pc(s) |
