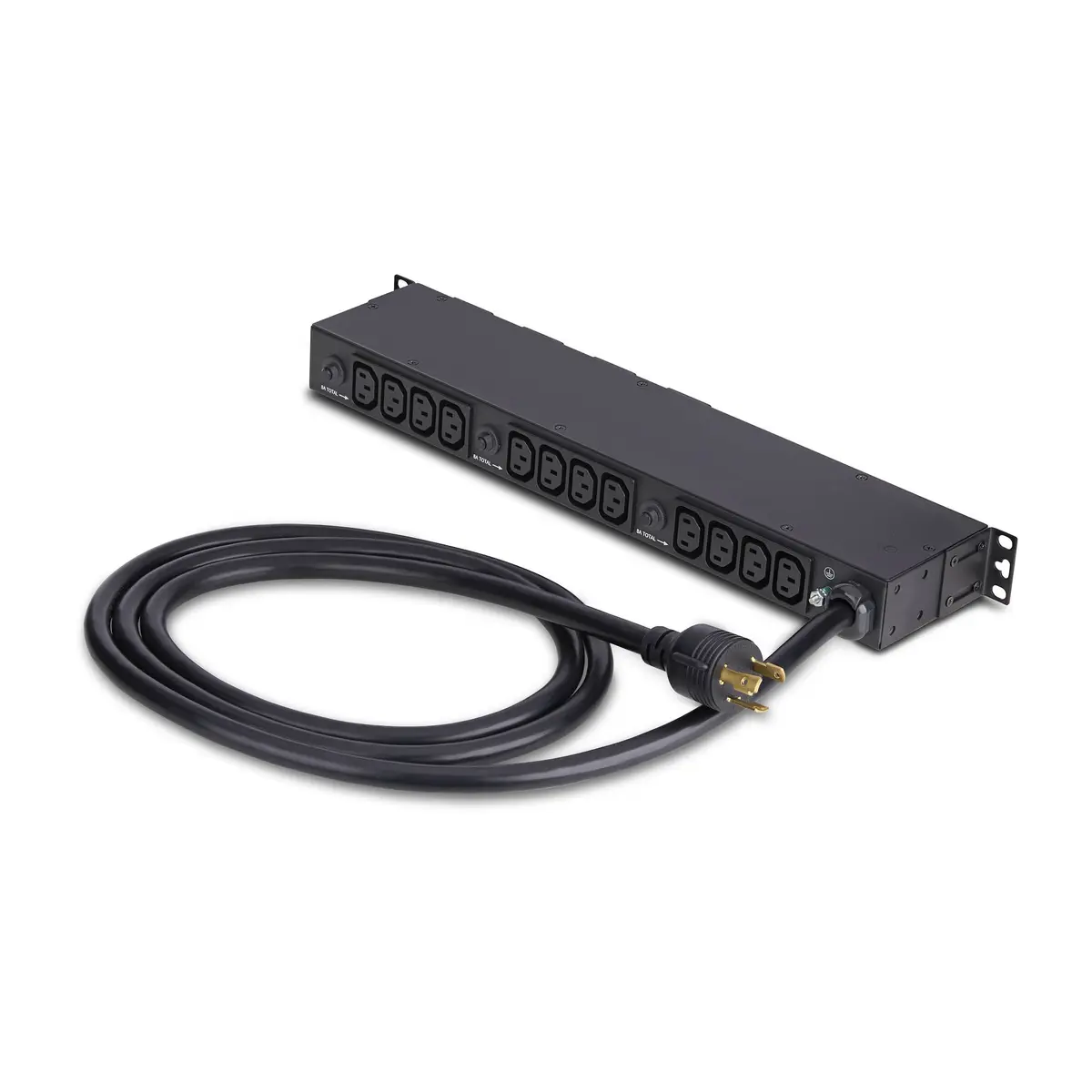

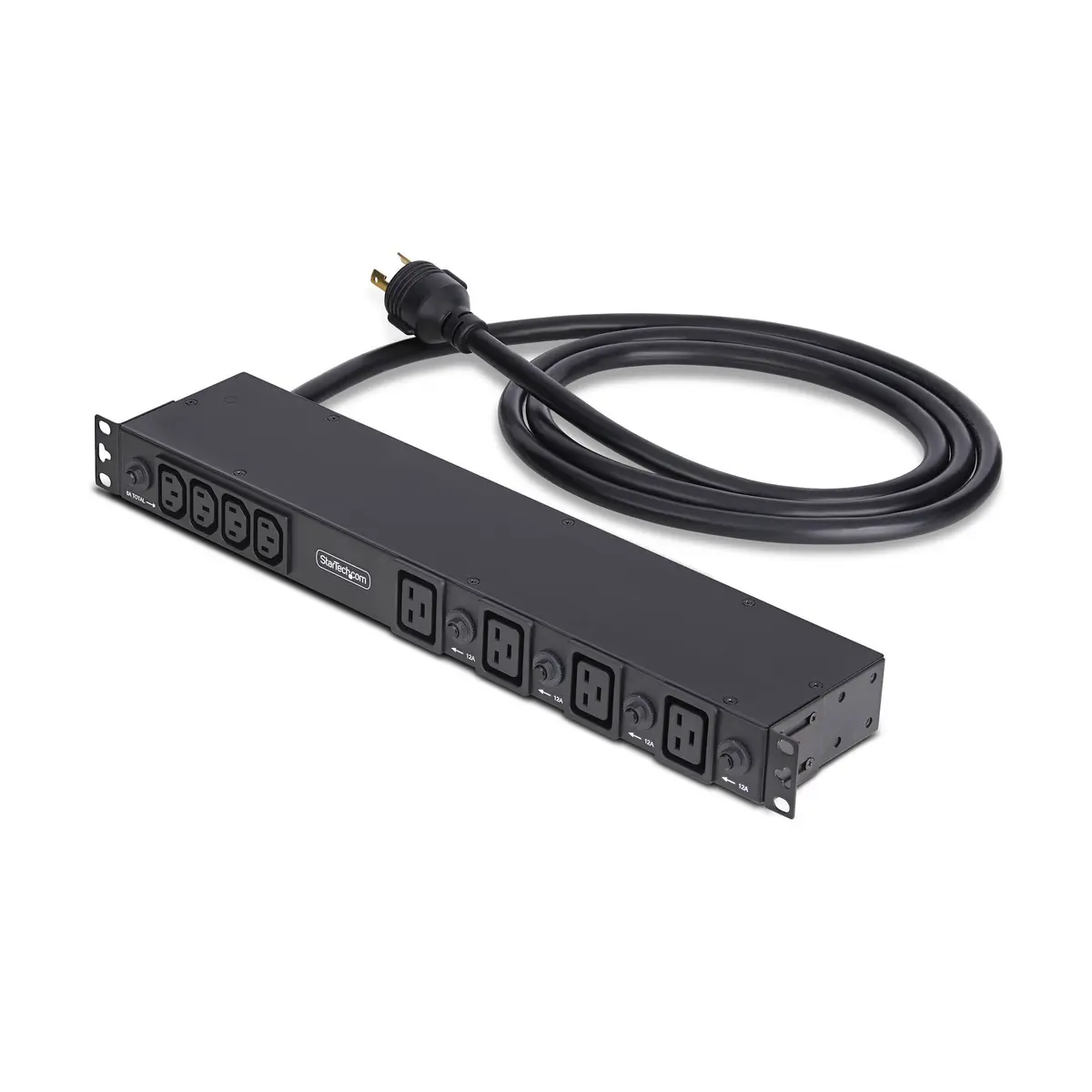

StarTech.com 20-Outlet Rackmount Pdu, 1U Server Power Strip, 16x C13 + 4x C19, NEMA – 2030B8H-RACK-PDU-IC
STARTECH 20-Outlet Rackmount PDU, 1U Server Power Strip, 16x C13 + 4x C19, NEMA
Features
Technical Specifications
| Brand | : | StarTech.com |
| Manufacturer Part Number | : | 2030B8H-RACK-PDU-IC |
| Product Category | : | UPS & Power Protection |
| UPC | : | 065030920919 |
| PDU types | : | Basic |
| Rack capacity | : | 1U |
| Housing material | : | Steel |
| Product color | : | Black |
| AC outlets quantity | : | 20 AC outlet(s) |
| AC outlet types | : | C13 coupler, C19 coupler |
| Cable length | : | 2,4 m |
| Nominal input voltage | : | 200-240 V |
| Maximum current | : | 30 A |
| Nominal output voltage | : | 200-240 V |
| Maximum input current per phase | : | 24 A |
| Maximum total current draw per phase | : | 30 A |
| Circuit breaker | : | Yes |
| Width | : | 43,3 mm |
| Depth | : | 500 mm |
| Height | : | 95,2 mm |
| Weight | : | 3,34 kg |
| Manual | : | Yes |
| Screws included | : | Yes |
| Number of screws | : | 4 |
| Screw nuts included | : | Yes |
| Number of screw nuts | : | 4 |
| Rack mount kit | : | Yes |
| Package weight | : | 3,6 kg |
| Package width | : | 511 mm |
| Package depth | : | 281 mm |
| Package height | : | 76 mm |
| Master (outer) case width | : | 528 mm |
| Master (outer) case length | : | 500 mm |
| Master (outer) case height | : | 299 mm |
| Quantity per master (outer) case | : | 4 pc(s) |
