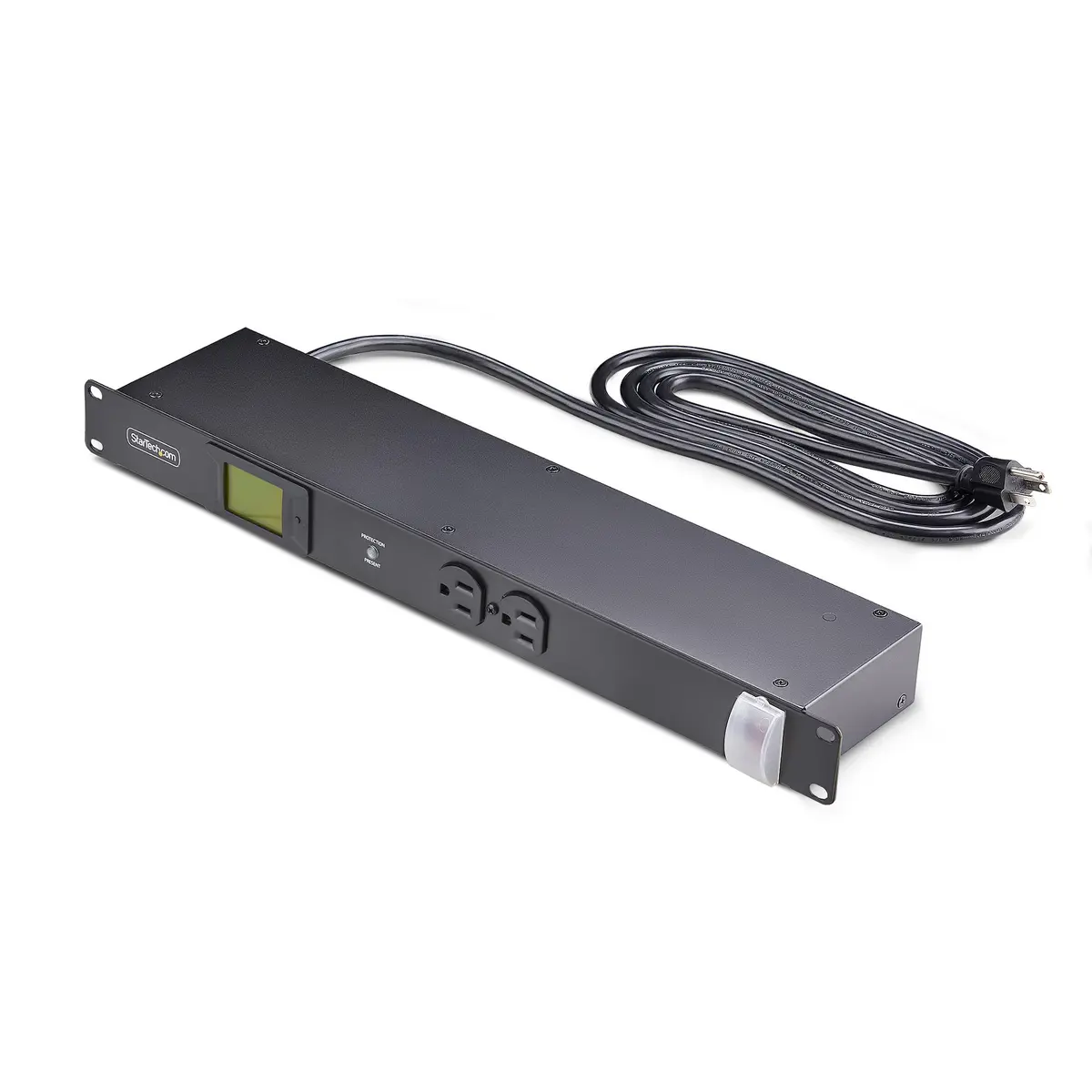

StarTech.com 8-Outlet Horizontal Rack Mount Pdu, 1U Server Power Distribution Strip – 8NM8-RACK-MOUNT-PDU
STARTECH 8-Outlet Horizontal Rack Mount PDU, 1U Server Power Distribution Strip
Features
Technical Specifications
| Brand | : | StarTech.com |
| Manufacturer Part Number | : | 8NM8-RACK-MOUNT-PDU |
| Product Category | : | UPS & Power Protection |
| UPC | : | 065030902557 |
| PDU types | : | Metered |
| Rack capacity | : | 1U |
| Mounting | : | Horizontal |
| Housing material | : | Steel |
| Product color | : | Black |
| Display | : | LCD |
| On/off switch | : | Yes |
| AC outlets quantity | : | 8 AC outlet(s) |
| AC outlet types | : | NEMA 5-15R |
| Power plug | : | NEMA 5-15P |
| LED indicators | : | Yes |
| Cable length | : | 2,4 m |
| Monitoring | : | Current, Power, Voltage |
| Nominal input voltage | : | 120 V |
| Maximum current | : | 15 A |
| Nominal output voltage | : | 120 V |
| Output voltage | : | 125 V |
| Maximum total current draw per phase | : | 15 A |
| Power protection features | : | Surge protection |
| Surge energy rating | : | 1080 J |
| Circuit breaker | : | Yes |
| Compliance certificates | : | Trade Agreements Act (TAA), cULus |
| Operating temperature (T-T) | : | 0 - 40 °C |
| Storage temperature (T-T) | : | -10 - 50 °C |
| Operating relative humidity (H-H) | : | 5 - 95% |
| Width | : | 483 mm |
| Depth | : | 96 mm |
| Height | : | 43 mm |
| Weight | : | 2 kg |
| Manual | : | Yes |
| Package weight | : | 2,4 kg |
| Package width | : | 550 mm |
| Package depth | : | 190 mm |
| Package height | : | 80 mm |
| Master (outer) case width | : | 570 mm |
